Cyclonic Choke Valves <br> More Uptime. Less Labor.</br>Reduced Production Costs. Cyclonic Choke Valves <br> More Uptime. Less Labor.</br>Reduced Production Costs.
Keep Your Wells Flowing Without Issue

Keep Your Wells Flowing Without Issue

Cyclonic offers low-maintenance in-line and angle body choke valves. These are quick to actuate (2-3 seconds from open to close) and can be designed to fit existing equipment, requiring no piping changes or equipment design changes. Because the valve is manufactured from a solid piece of steel, it is exceptionally resistant to wear and tear in corrosive conditions.

Diverse Applications    |    Ease of Maintenance    |    Erosion Detection

Features of Cyclonic Choke Valves Includes

  • Side-entry port for simple maintenance
  • Low profile, compact design
  • In-line and angle body configurations
  • 2:1 gear reduction for low torque automation
  • Available in multiple line sizes: 1” – 6”
  • Max operating temperature: 650°F
  • Max operating pressure: up to 15,000 psi
  • Wear resistant tungsten-carbide discharge sleeve
  • Class VI shutoff performance
  • Tungsten-carbide seats with customizable Cv and flow characteristics
  • Excellent choice for cavitating liquid service

Industries & Applications for Cyclonic Choke Valves

Cyclonic® Choke Valves are designed for demanding oil and gas applications where traditional choke valves experience frequent maintenance due to erosion, high pressure drops or changing production conditions. The valve's solid-body construction, tungsten carbide wear components, side-entry maintenance design, and erosion detection capabilities make it particularly effective in severe-service environments.
Maintain precise flow control while managing the erosive effects of sand, liquids, and high-velocity production streams. Cyclonic Choke Valves provide reliable operation throughout changing well conditions and can be automated for remote operation and production optimization.
Control pressure reductions and flow rates within gas production facilities while minimizing maintenance requirements. The side-entry design allows wear components to be inspected or replaced without removing the valve from the line, reducing downtime and labor costs.
Applications that contain sand, scale, or other abrasive particulates can rapidly damage conventional choke valves. Cyclonic valves utilize tungsten carbide wear components and an erosion-resistant design to extend service life in abrasive operating environments.
The valve's low-torque design and fast actuation speed support automated control strategies where quick response times are required. Available in both in-line and angle-body configurations, Cyclonic valves can be integrated into new installations or retrofit projects.
As production conditions evolve over the life of a well, operators often need flexibility to accommodate changing flow characteristics. Interchangeable trim options and simplified maintenance procedures help support long-term operation without costly piping modifications or valve replacements.
For locations where maintenance access is limited, Cyclonic valves help reduce field intervention through durable wear components and built-in erosion monitoring. The ability to identify wear before damage reaches the valve body helps operators plan maintenance activities and avoid unplanned downtime.

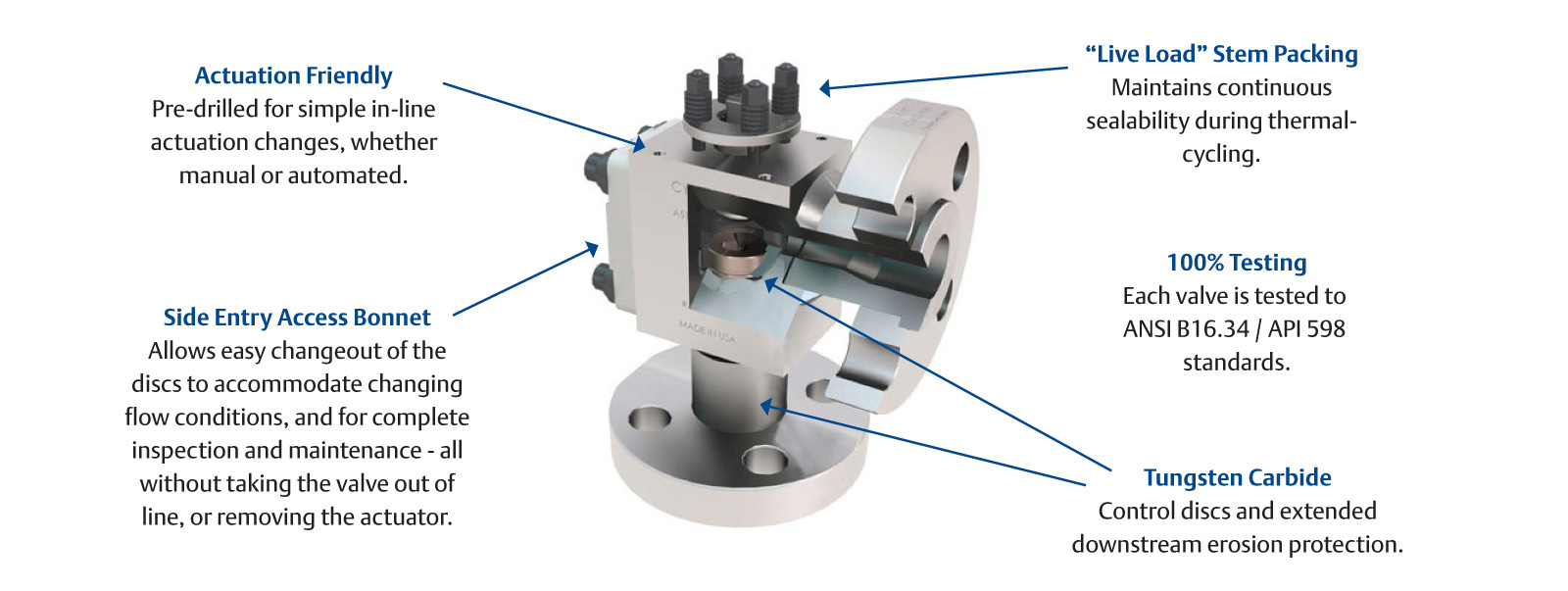

Side-Entry Angle Pattern Control & Choke Valves

Actuation Friendly

Pre-drilled for simple in-line actuation changes, electric or pneumatic.

Side Entry Access Bonnet

Allows easy changeout of the discs to accommodate changing flow conditions, and for complete inspection and maintenance – all without taking the valve out of line or removing the actuator.

Live Load Stem Packing

Maintains continuous seal ability during thermal cycling.

100% Testing

Each valve is tested to ANSI 16.34/API 598 standards.

Tungsten Carbide

Control discs and extended downstream erosion protection.
Reduce maintenance, minimize downtime, and lower operating costs with Cyclonic Choke Valves. Talk with an ECI expert today to find the right solution for your application or request a quote.
Call us or Complete the Dropdown Form
724-746-3700
+
Talk to an expert

Here’s What Our Customers Have to Say:

"Our company has used Cyclonic Valves in several applications with a lot of success. We have used them at the wellhead, at our Gas Production Units (GPU) to make our final pressure cut, and on our wells that are outfitted with plungers at the end of their life. Being able to standardize on a common valve while allowing for use in a number of applications has been great for our team. The fact that the Cyclonic Valve can actuate from open to close so quickly allows for a wider range of applications on pad for us.”
“A feature that we really like about the Cyclonic Choke Valve is that it has a port to sense pressure behind the wear assembly sleeve. If we see a pressure excursion, we know that the wear assembly needs to be changed. Having this included in the valve design, allows our team to quickly identify a wear issue so that we can plan and perform maintenance on the valve while preventing irreparable damage to the valve body. We know this has prevented downtime of our wells while also avoiding replacing valve assemblies in the field. All of this keeps our wells flowing without issue.”
“Our main driver for switching over to the Cyclonic Valve was that it was simple and intuitive for field personnel. Changing trim can be completed in minutes without the use of a crane or removing an actuator to access the trim. It was a no brainer for us to make the change to Cyclonic. Our inventory requirements to maintain the valve are limited to a door seal O-Ring and replacement discs.”
